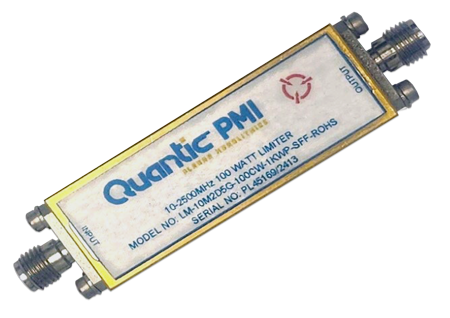

LM-10M2D5G-100CW-1KWP-SFF-ROHS Active

RF Limiter

Product Feature

Quantic PMI Model No. LM-10M2D5G-100CW-1KWP-SFF-ROHS is a RF limiter that operates in the 0.01 to 2.5 GHz frequency range. This limiter can handle 100 W CW and 1 kW peak (1% duty cycle, 1 µs maximum pulse width) input power and provides a maximum leakage of +14 dBm CW input. This module has a low insertion loss of 0.5 dB and a recovery time of 2 µs typical. RoHS compliant.

Product Specifications

General Parameters:
Status: Active
Frequency: 0.01 to 2.5 GHz
Frequency Min: 0.01 GHz
Frequency Max: 2.5 GHz
Insertion Loss: 0.5 dB Typ
Input/Output VSWR: 1.3:1 Max
Input Power: 100 W CW Max
1 kW peak (1% duty cycle, 1 µs Max pulse width)
Maximum Flat Leakage: 14 dBm Max @ 10 W CW
P1dB: 0 dBm Min
Recovery Time: 2 µs Typ
Impedance: 50 Ohm
Connectors In/Out: SMA (F) removable
Size: 1.86” x 0.65” x 0.38”
Finish: Gold Plated
Constant Acceleration: MIL-STD-883, Method 2001 A (Y1 Axis)
External Visual: MIL-STD-883, Method 2009
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -60 ºC to +100 ºC
Stabilization Bake: MIL-STD-883, Method 1008 Cond. B
Thermal Cycle: MIL-STD-883, Method 1010 Cond. B
