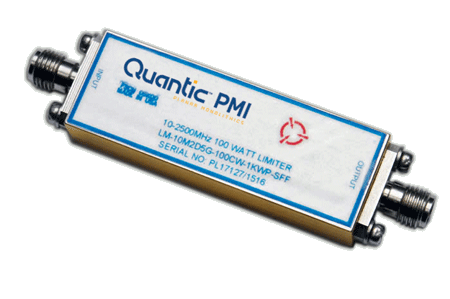

General Parameters: |
Status: | Active |
Frequency: | 0.01 to 2.5 GHz |
Frequency Min: | 0.01 GHz |
Frequency Max: | 2.5 GHz |
Insertion Loss: | 0.5 dB Typ |
Insertion Loss (Measured): | 0.5 dB Typ - Measured 1.09 dB |
Input/Output VSWR: | 1.3:1 Max |
VSWR (Measured): | 1.3:1 Max (@ -10 dBm input) Measured Input: 1.28:1- Output: 1.22:1 |
Input Power: | 100 watts CW Max (Notes 1, 2), 1 kW peak (1% duty cycle, 1 µs Max pulse width) (Notes 1, 2, 3) |
Maximum Flat Leakage: | 14 dBm Max @ 10 W CW |
P1dB: | 0 dBm Min |
Recovery Time: | 2 µs Typ |
Impedance: | 50 Ohms |
Finish: | Gold Plated |
Constant Acceleration: | MIL-STD-883, Method 2001 A (Y1 Axis) |
External Visual: | MIL-STD-883, Method 2009 |
Environmental Ratings: |
Operating Temperature: | -55 ºC to +85 ºC |
Non-Operating Temperature: | -60 ºC to +100 ºC |
Stabilization Bake: | MIL-STD-883, Method 1008 Cond. B |
Thermal Cycle: | MIL-STD-883, Method 1010 Cond. B |
