LM-10M27G-15DBM-4W-292FF Preliminary

Limiter

Product Feature

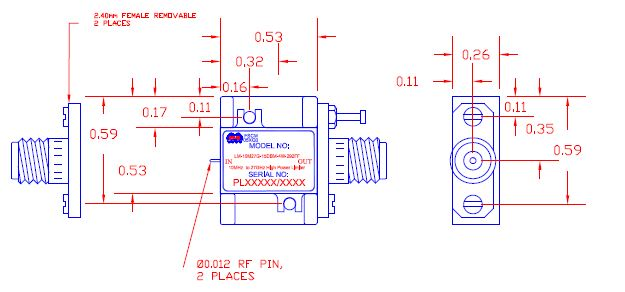

Quantic PMI Model LM-10M27G-15DBM-4W-292FF is a passive limiter that operates in the frequency range of 0.01 to 27 GHz. This model is capable of handling an input power of 25 to 4 W CW (0.02 to 18 GHz) and 50 to 40 W pulse peak power (0.02 to 18 GHz), with 1 μs PW, 1% duty cycle. Package size is 0.58" x 0.6" x 0.26" with removable 2.92 mm female connectors. Can be used as connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.01 to 27
Frequency Min (GHz): 0.01
Frequency Max (GHz): 27
Insertion Loss (dB): 0.01 to 8 GHz: 1.30 Max
8 to 18 GHz: 2.30 Max
18 to 25 GHz: 2.60 Max
25 to 27 GHz: 3.0 Max
Input/Output VSWR: 2.0:1 Max
Power Handling: 25 W CW Max (0.02 GHz)
10 W CW Max (1 GHz)
8 W CW Max. (2 GHz)
5 W CW Max (4 GHz)
4 W CW Max (8 to 18 GHz)
Input Power: 0.01 to 8 GHz: 1.30 dB Max
8 to 18 GHz: 2.30 dB Max
18 to 25 GHz: 2.60 dB Max
25 to 27 GHz: 3.0 dB Max
Flat Leakage Power: 0.02 to 2 GHz: 18 dBm Typ
2 to 4 GHz: 18 dBm Typ
4 to 8 GHz: 16 dBm Typ
8 to 12 GHz: 12 dBm Typ
12 to 18 GHz: 10 dBm Typ
20 to 27 GHz: 10 dBm Typ
P1dB: 8 dBm Min
Recovery Time: 150 ns Max
P1dB Limiting Threshold (dBm): +8 Min
Connectors In/Out: 2.92 Female
Finish: Gold Plated
Peak Input Power: 50 W Peak Max (0.02 to 12 GHz)
40 W Peak Max (18 GHz)
(1 µs Pw, 1% Duty Cycle)
Insertion Loss @ -10 dBm Input Power: 0.01 to 8 GHz: 1.30 dB Max
8 to 18 GHz: 2.30 dB Max
18 to 25 GHz: 2.60 dB Max
25 to 27 GHz: 3.0 dB Max
VSWR @ -10 dBm Input Power: 2.0:1 Max
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107A COND. A
