LM-10M18G-16-20W-AL-OPT8G12G Preliminary

Limiter

LM-10M18G-16-20W-AL-OPT8G12G
Product Feature

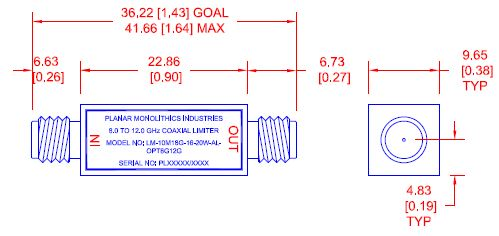

Quantic PMI Model LM-10M18G-16-20W-AL-OPT8G12G is a coaxial limiter with an operating range of 8.0 to 12.0 GHz. This model has a maximum insertion loss of 1.8 dB and a typical VSWR of 1.8:1. This compact unit measures 0.90" x 0.38" square and is outfitted with SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 8 to 12
Frequency Min (GHz): 8
Frequency Max (GHz): 12
Insertion Loss (dB): 1.8 Max
Input/Output VSWR: 1.8:1 Typ
Power Handling: 20 W Min
Input Power: 20 W Min
Saturation Recovery Time: 100 ns Typ
Impedance: 50 Ohms
Connectors In/Out: SMA (F)
Size: 0.90" x 0.38" x 0.38" Max
Finish: Painted Blue
Weight: 20 g Max
Peak Power Handling: 50 W min.
Limiting Output: 15 dBm Max
Duration of Signal Transmission: 100 seconds
Phase Matching Unit to Unit Per Lot: ±5° Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -20°C to +50°C
Non-Operating Temperature: -62°C to +95°C
Vibration: 0.49 grms
Shock: 6G
Altitude: 25, 000 ft.
Shock Duration: 11 ms
