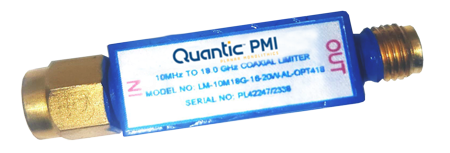

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 4 to 18 |
|---|
| Frequency Min (GHz): | 4 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 2 dB @ -10 dBm Input Power |
|---|
| Input/Output VSWR: | 2.0:1 Max @ -10 dBm Input Power |
|---|
| Input Power: | 20 W CW Max
500 W Peak Max - 1 µs PW / 1 kHz PRF |
|---|
| Leakage Power: | +15 dBm Typ |
|---|
| RF Leakage (dBm): | +15 Typ |
|---|
| Recovery Time: | 250 ns Max |
|---|
| Limiting Threshold (dBm): | +5 dBm Nom (1 dB Compression) |
|---|
| P1dB Limiting Threshold (dBm): | +5 Nom (1 dB Compression) |
|---|
| Impedance: | 50 Ohm |
|---|
| Connectors In/Out: | RF IN: SMA Male
RF OUT: SMA Female |
|---|
| Size: | 22.86 mm x 9.65 mm x 9.65 mm
0.90" x 0.38" sq
excluding connectors |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 20 g Max |
|---|
| RF Power Handling: | 20 W CW Max
500 W Peak Max - 1 µs PW / 1 kHz PRF |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C |
|---|
| Non-Operating Temperature: | -62 °C to +95 °C |
|---|
| Humidity: | 100% |
|---|
| Vibration: | 0.1 inchpp or ± 10G, 5 ~ 500 Hz
(Figure 2, Sheet 1 of 3, Curve IV) |
|---|
| Shock: | 20G, 11±1 ms |
|---|
| Altitude: | 70, 000 FT |
|---|
