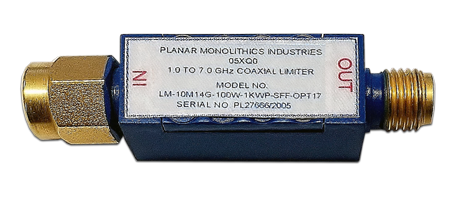

PMI Model No. LM-10M14G-100W-1KWP-SFF-OPT17 is an RF Limiter that works in the frequency range of 10 MHz to 7.0 GHz. This limiter can handle 100 W CW over 1.0 to 7.0 GHz, for all temperatures (-55 ºC to +85 ºC) and 1 KW peak (10% work cycle, 10 μs maximum pulse width) energy input and provides maximum leakage of +17 dBm typical. This model has a low insertion loss of 2.0 dB and a recovery time of 100 ns typical.
*Note that this device requires external DC blocks, do not apply DC voltages at I/O*

Product Specifications

General Parameters:
Status: Active
Frequency: 0.01 to 7.0 GHz
Frequency Min: 0.01 GHz
Frequency Max: 7.0 GHz
Insertion Loss: 2.0 dB Typ
Input/Output VSWR: 2.0:1 Max (@ -10 dBm Input)
Input Power: 100 W CW Max, 1.0 to 7.0 GHz
All Temperatures (-55 ºC to +85 ºC)
1 KW Peak (1% Duty Cycle, 1 µs Pulse Width
100 W Peak (10% Duty Cycle, 10 µs Pulse Width)
Maximum Flat Leakage: 17 dBm Typ @ 100 W CW
P1dB: 5 dBm Min
Recovery Time: 100 ns Typ
Impedance: 50 Ohm
Size: 0.90” x 0.38” x 0.38”
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -62 ºC to +95 ºC
Humidity: 100%
Vibration: 0.1 inchpp or ±10G, 5~500 Hz
(Figure 2, Sheet 1 of 3, Curve IV)
Shock: 15G, 11 ± 1 ms
Altitude: 70,000 ft
