LM-10M12G-20-10W-SFF Active

High Power Limiter

Product Feature

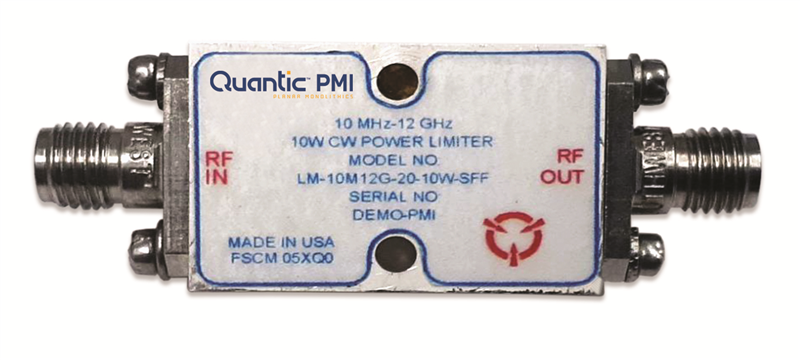

Quantic PMI Model LM-10M12G-20-10W-SFF is a high-power limiter operating in the frequency range of 0.01 to 12 GHz with 10 W of CW power handling (40 dBm) and 100 W peak. This compact housing measures 1.0" x 0.68" x 0.35" and is fitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.01 to 12
Frequency Min (GHz): 0.01
Frequency Max (GHz): 12
Insertion Loss (dB): 2 Max
Input/Output VSWR: 2:1 Max
Input Power: 40 dBm CW Max
Peak Power 100 W,
Pulse 1 µs 1% Duty Cycle
RF Leakage (dBm): 20 Typ
Recovery Time: 1 µs Max
Connectors In/Out: SMA (F)
Size: 1.00" x 0.68" x 0.35"
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
