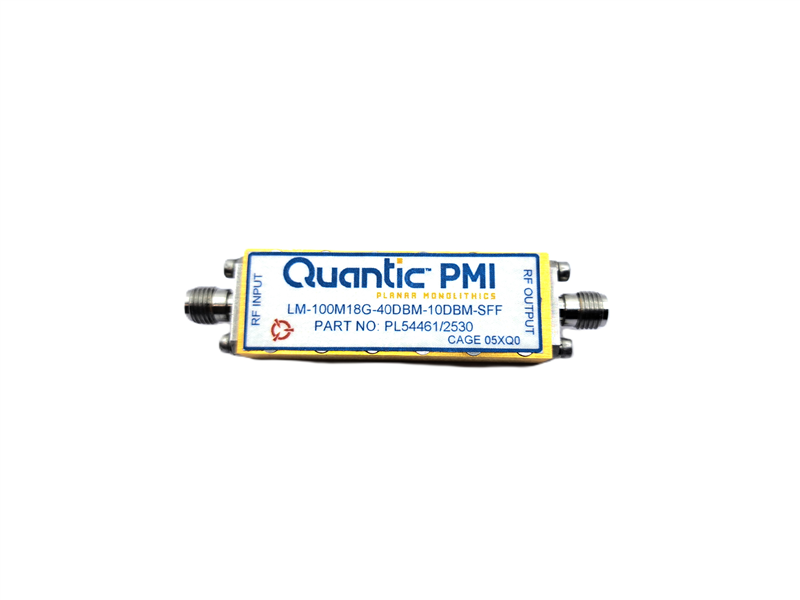

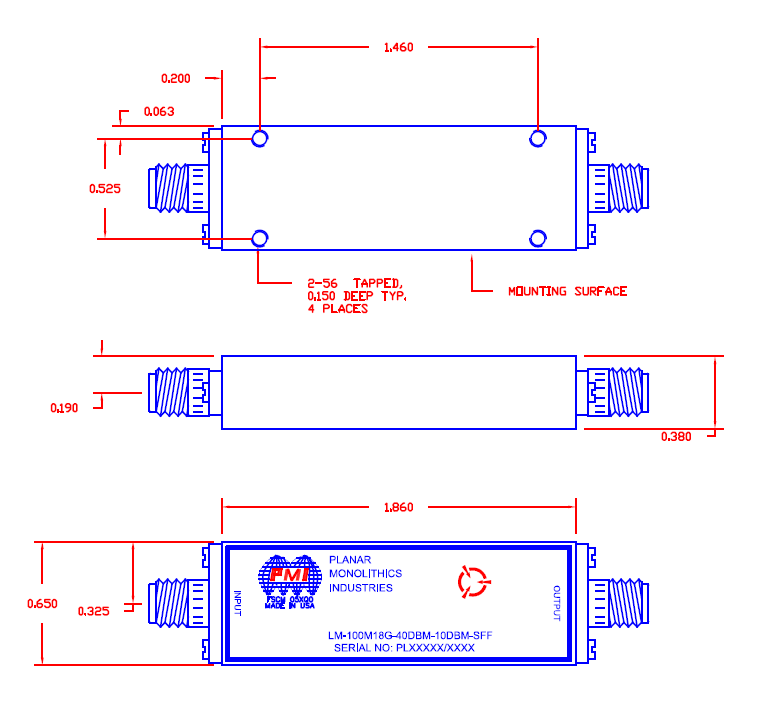

LM-100M18G-40DBM-10DBM-SFF Preliminary

RF Limiter

Product Feature

Quantic PMI Model LM-100M18G-40DBM-10DBM-SFF is an RF Limiter that operates over the frequency range of 0.1 to 18 GHz. This limiter handles 10 W (+40 dBm) of input power, insertion loss is less than 4 dB, and VSWR is 2.0:1 maximum. Supplied with field replaceable SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.1 to 18
Frequency Min (GHz): 0.1
Frequency Max (GHz): 18
Insertion Loss (dB): 4 Max
3 Goal
Input/Output VSWR: 2.0:1 Max
Input Power: 10 W (+40 dBm) CW
1 kW (+60 dBm) Peak Max @ 1 µs Pulse Width, 1% Duty Cycle
Input and Output DC Blocked
RF Leakage (dBm): 10 Max, 8 Goal
Recovery Time: 250 ns Max @ 1 kW Peak Power
100 ns Max @ 10 W
Connectors In/Out: SMA (F) - Field Replaceable
Finish: Gold Plated
Environmental Ratings:
Operating Temperature: -54 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
