LM-100M18-2D5W-12DBM-SFF Active

High Power Limiter

Buy Now
Product Feature

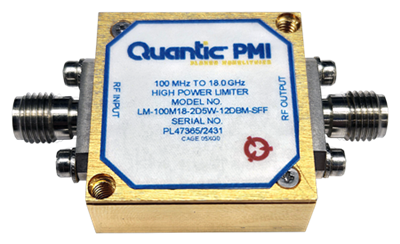

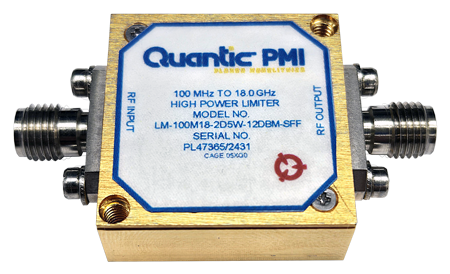

Quantic PMI Model LM-100M18-2D5W-12DBM-SFF is a high power limiter that operates over the 0.1 to 18 GHz frequency range. This model can handle an input power of 2.5 Watts CW, housed within a compact 1.00" x 1.00" x 0.40" package outfitted with field replaceable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.1 to 18 GHz
Frequency Min (GHz): 0.1
Frequency Max (GHz): 18
Insertion Loss (dB): 2.5 Max
Input/Output VSWR: 2.0:1 Max
Input Power: 2.5 W CW Max
RF Leakage (dBm): +13 Typ
Recovery Time: 100 ns Typ
Connectors In/Out: SMA (F)
Size: 1.00" x 1.00" x 0.40" (Excluding Connectors)
Finish: Gold Plated
Insertion Loss @ -20 dBm Input Power: 2.5 dB Max
VSWR @ -20 dBm Input Power: 2.0:1 Max
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107A Cond. A
