LM-0R3G8G-14-100W-SFF Active

High Power Limiter

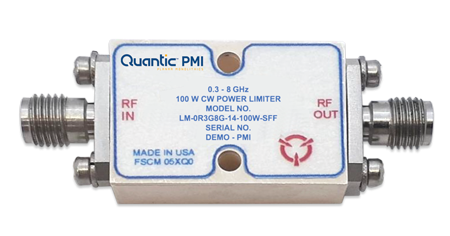

Quantic PMI Model: LM-0R3G8G-14-100W-SFF is a high-power limiter operating in the frequency range of 0.3 to 8 GHz, with 100 W of CW power handling (+50 dBm), and RF peak incident power 100 W (Pulse width 25 µs, Duty Cycle 5%) this compact housing is fitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 0.3 GHz
Frequency Max: 8 GHz
Insertion Loss: 2.20 dB Max
Input/Output VSWR: 2:1 Max
Input Power: +50 dBm CW Max (100 W)
+50 dBm Peak, 25 µs Pulse, 5% Duty Cycle (100 W)
Flat Leakage Power: +15 dBm Typ
P1dB: +5 dBm Typ
Recovery Time: 100 ns Max
Connectors In/Out: SMA Female
Size: 1.00" x 0.68" x 0.35"
Finish: Blue Paint
Environmental Ratings:
Operating Temperature: -45 °C to +85 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond B
Vibration: MIL-STD-202, Method 204D Cond B
Shock: MIL-STD-202, Method 2013B Cond B
Altitude: MIL-STD-202, Method 105C Cond B
Temperature Cycle: MIL-STD-202, Method 107D Cond A
