LM-0R1G4G-100W-15DBM-SMF Active

High-Power Limiter

LM-0R1G4G-100W-15DBM-SMF
Product Feature

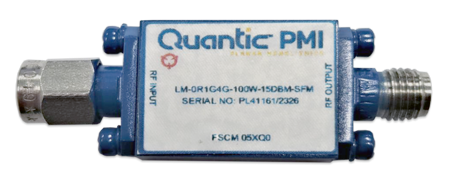

Quantic PMI Model LM-0R1G4G-100W-15DBM-SMF is a high-power limiter that operates over the 0.1 to 4 GHz frequency range. This Model can handle an input power of 100 W CW.  Package size is 0.625" x 0.80" x 0.40" with SMA male / female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.1 to 4
Frequency Min (GHz): 0.1
Frequency Max (GHz): 4
Insertion Loss (dB): 1.5 dB Max
Input/Output VSWR: 2.0:1 Max
Input Power: 50 dBm CW (100 W) Max
60 dBm Peak (1 kW) 1% DC, 1 µs PW
RF Leakage (dBm): 15 Max (Flat)
Recovery Time: 100 ns Max
Connectors In/Out: SMA Male/Female
Size: 15.88mm x 20.32mm x 10.16mm (Excluding Connectors)
0.625" x 0.80" x 0.40" (Excluding Connectors)
Finish: Hermetically sealed, painted blue. Mounting surface free of paint
Weight: 2.0 oz Max
Insertion Loss @ -10 dBm Input Power: 2.0:1 Max (Input/Output)
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -54 °C to +55 °CC
Non-Operating Temperature: -57 °C to +85 °CC
Humidity: 100% RH (WITH CONDENSATION)
Altitude: 43, 000 FT
