LM-0D5G2G-5CW-54DBM-PP Preliminary

Product Feature

PMI Model LM-0D5G2G-5CW-54DBM-PP is an RF limiter that operates over the 0.5 to 2.0 GHz frequency range. This limiter can handle 5 W CW and 54 dBm (5% duty cycle, 1 μs pulse widith) input power and provides a maximum leakage of +22 dBm (5% duty cycle, 1 μs  pulse width). This model has a low insertion loss of 1 dB and a recovery time of 10 μs maximum.

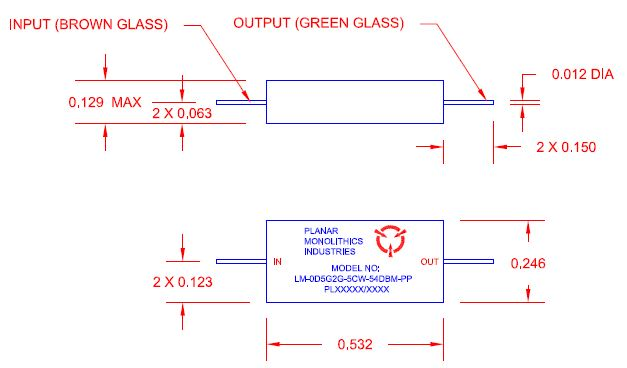

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.5 to 2 GHz
Frequency Min (GHz): 0.5
Frequency Max (GHz): 2
Insertion Loss (dB): 1.0 MAXIMUM@ -10 dBm INPUT
Input/Output VSWR: 2.0:1 MAX@ -10 dBm INPUT
Input Power: 5 W CW MINIMUM
54 dBm (5% DUTY CYCLE, 1 µs PULSE WIDTH)
Spike Leakage: 0.5 ergs MAXIMUM (5% DUTY CYCLE, 1 µs PULSE WIDTH)
RF Leakage (dBm): 22 Max (5% Duty Cycle, 1 µs Pulse Width)
Recovery Time: 10 µs MAXIMUM
Impedance: 50 OHMs
Finish: Gold Plated
Environmental Ratings:
Operating Temperature: -55 °C TO +85 °C
Non-Operating Temperature: -65 °C TO +125 °C
Stabilization Bake: MIL-STD-883, METHOD 1008, COND. B
Humidity: MIL-STD-202F, METHOD 103B, COND. B
Altitude: 55, 000 FT
Thermal Shock: MIL-STD-202F, METHOD 107D, COND. A
Mechanical Shock: MIL-STD-202F, METHOD 213B, COND. J
