LM-0D52-C3-1 Active

High Power Limiter

Product Feature

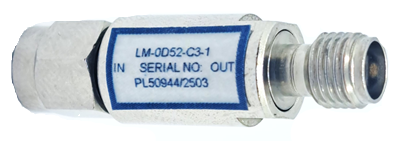

Quantic PMI Model LM-0D52-C3-1 is a high power limiter that works from 0.5 to 2 GHz with power handling of 1 kW peak and 3 W average. Package size is 1.314" x 0.375" (Diameter) with 2.92mm male/female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 2 GHz
Frequency Min (GHz): 0.5
Frequency Max (GHz): 2
Insertion Loss (dB): 0.5 Max
Input/Output VSWR: 1.5 Max
Peak Power: 1 kW Max
Input Power: 3 W Max
RF Leakage (dBm): 23 Typ
Recovery Time: 1000 ns Typ
Connectors In/Out: 2.92mm (M)/(F)
Size: 1.31" (Length)
0.38" (Diameter)
Weight: <1 oz Typ
Environmental Ratings:
Operating Temperature: -55 °C to +125 °C
Derate Power Handling to Zero @ +125 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
