| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.5 to 8 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 8 |
|---|
| Insertion Loss (dB): | 2 dB Max, 1.5 Typ |
|---|
| Input/Output VSWR: | 2.0:1 Max |
|---|
| Input Power: | 1 Watt CW, 100 Watts Peak, 1 us Pulse Width, 0.1% Duty Cycle, Derated to 20% @ 125 ºC |
|---|
| RF Leakage (dBm): | +14 Max, +10 Typ |
|---|
| Speed: | 10 ns |
|---|
| P1dB Limiting Threshold (dBm): | +10 Typ |
|---|
| Connectors In/Out: | SMA (M/F) |
|---|

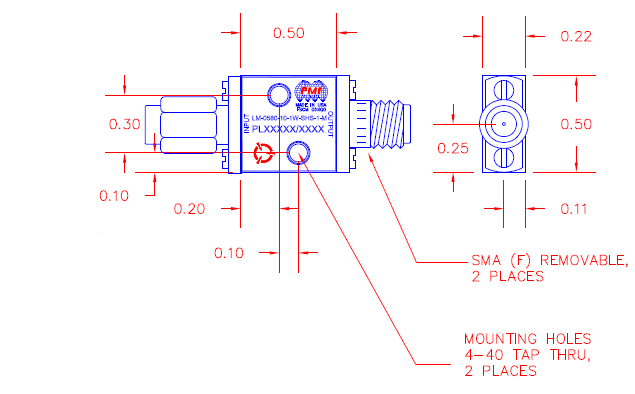

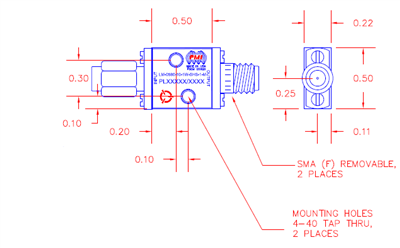

| Size: | 0.5" x 0.5" x 0.22" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
