LM-0518-10-1W-SHS-2-M-1218 *

High Power Limiter

Buy Now

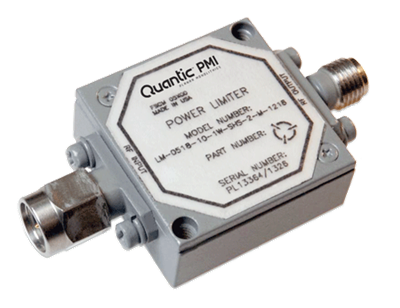

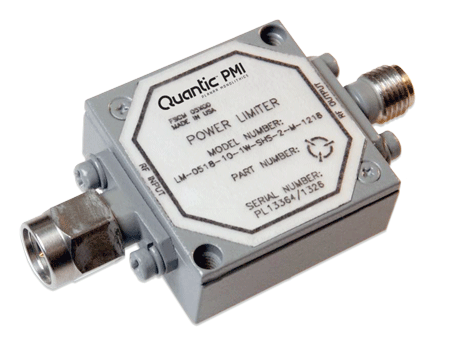

Model LM-0518-10-1W-SHS-2-M-1218 is a high-power limiter that operates from 12.0 to 18.0 GHz. This limiter handles 100 Watts Peak Power with a pulse width of 1 µs. The insertion loss is only 1.5 dB typically and has a VSWR of 2.0:1 maximum. This limiter is supplied in a small housing measuring only 1.0" x 1.0" x 0.4".

Product Specifications

General Parameters:
Status: Active
Frequency: 12.0 to 18.0 GHz
Frequency Min: 12 GHz
Frequency Max: 18 GHz
Insertion Loss: 2.0 dB Max, 1.5 dB Typ
Insertion Loss (Measured): 2.0 dB Max, 1.5 dB Typ - Measured 1.64 dB
Input/Output VSWR: 2.0:1 Max
VSWR (Measured): 2.0:1 Max - 1.5:1 Typ - Measured 1.3:1
Peak Power: 100 Watts
Input Power: 100 W (Peak)
Leakage Level: +14 dBm Max, +10 dBm Typ
Pulse width: 1 µs
Duty Cycle: 0.001
Connectors In/Out: SMA (F)
Size: 1.0" x 1.0" x 0.4"
Finish: Painted Gray
Environmental Ratings:
Operating Temperature: -54 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
SourceIn StockPricePurchase
Buy Now
2295 USDBuy Now
