LM-0518-10-1W-SHS-2-FM-HERM Active

High Power Limiter

LM-0518-10-1W-SHS-2-FM-HERM

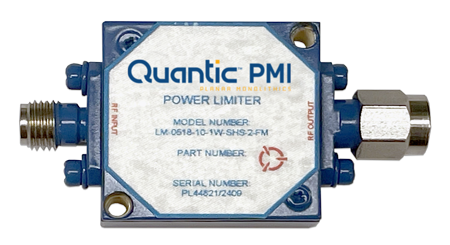

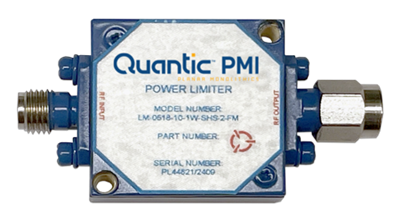

Quantic PMI Model LM-0518-10-1W-SHS-2-FM-HERM is a High-Power Limiter that operates from 0.5 to 18 GHz that handles 100 W Peak Power with a pulse width of 1 µs. The insertion loss is only 1.5 dB typically and has a VSWR of 2.0:1 maximum. This limiter is supplied in a small, hermetically sealed housing measuring only 1.0" x 1.0" x 0.4" with SMA (M/F) connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 18
Frequency Min (GHz): 0.5
Frequency Max (GHz): 18
Insertion Loss (dB): 2 dB Max, 1.5 Typ
Input/Output VSWR: 2.0:1 Max
Peak Power: 100 W
Average Power: 12 W Max
Input Power: 12 W Max
RF Leakage (dBm): +10 Max
Pulse width: 1 µs
Duty Cycle: 1%
Connectors In/Out: SMA (M/F)
Size: 1.0" x 1.0" x 0.4"
Sealing: Hermetic
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -54 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
