LM-0518-10-1W-SHS-1-SMF Active

Limiter

LM-0518-10-1W-SHS-1-SMF
Product Feature

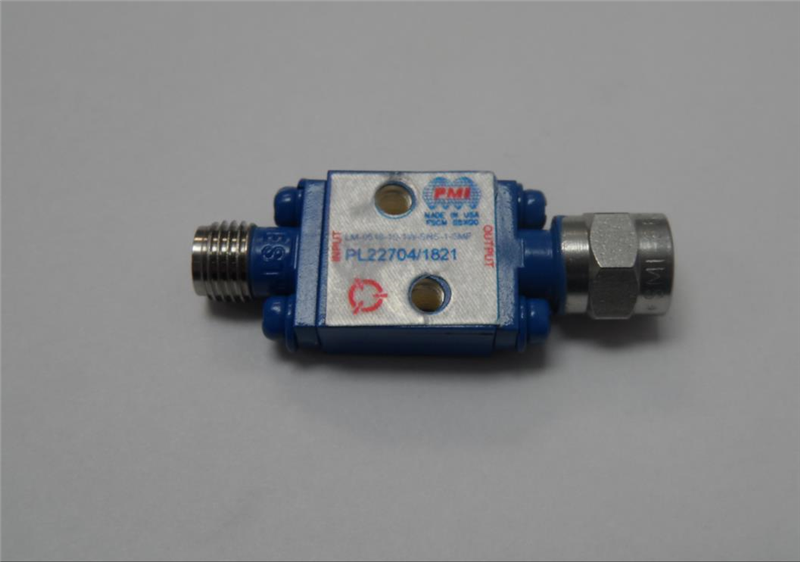

Quantic PMI Model LM-0518-10-1W-SHS-1-SMF is a high speed, high power limiter that operates from 0.5 to 18.0 GHz.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 18
Frequency Min (GHz): 0.5
Frequency Max (GHz): 18
Insertion Loss (dB): 2 dB
Input/Output VSWR: 2.0:1 Max
Peak Power: 100 Watts Peak
Input Power: 1 Watt CW, 100 Watts
RF Leakage (dBm): +14 Max, +10 Typ
Speed: 10 ns
P1dB Limiting Threshold (dBm): +10 Typ
Connectors In/Out: SMA (F/M)
Size: 0.5" x 0.5" x 0.22"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -54 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
