LM-0518-10-1W-SHS-1-M Active

Limiter

LM-0518-10-1W-SHS-1-M
Product Feature

Quantic PMI Model LM-0518-10-1W-SHS-1-M is a high speed, high power limiter that operates from 0.5 to 18.0 GHz. This limiter handles 100 Watts Peak Power with a pulse width of 1 µs. The insertion loss is only 1.5 dB typically and has a VSWR of 2.0:1 maximum. This limiter is supplied in a small housing measuring only 0.5" x 0.5" x 0.22".

Additional Product Information under, http://www.planarmonolithics.com/products/LM-0518-10-1W-SHS-1-M.htm

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 18
Frequency Min (GHz): 0.5
Frequency Max (GHz): 18
Insertion Loss (dB): 2 dB Max, 1.5 Typ
Input/Output VSWR: 2.0:1 Max
Peak Power: 100 Watts
Input Power: 1 Watt CW, 100 Watts
RF Leakage (dBm): +14 Max, +10 Typ
Speed: 10 ns
Pulse width: 1 µs
P1dB Limiting Threshold (dBm): +10 Typ
Connectors In/Out: SMA Male / Female

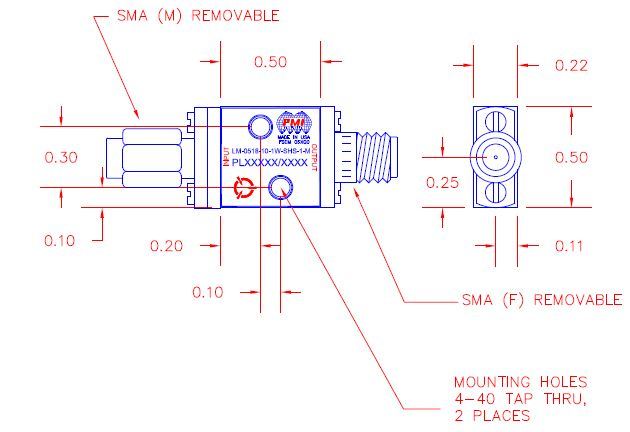

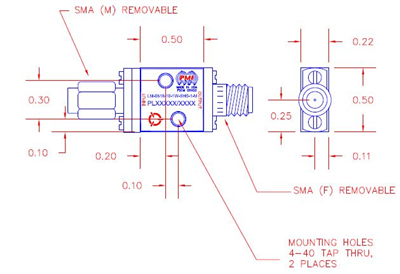

Size: Style 1: 0.5" x 0.5" x 0.22" Style 2: 1.0" x 1.0" x 0.4"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
