LM-0518-10-1W-SHS-1-F * Active

High Speed, High Power, Diode Limiter

Buy Now
Product Feature
Additional Documents

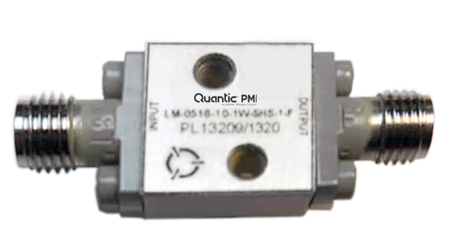

Quantic PMI Model LM-0518-10-1W-SHS-1-F is a high speed, high power, diode limiter that operates over the frequency range of 0.5 to 18.0 GHz. This limiter handles 100 Watts Peak Power with a pulse width of 1 µs; insertion loss is less than 2 dB typically and has a VSWR of 2.0:1 maximum.  Supplied with removable SMA female connectors in a small housing measuring only 0.5" x 0.5" x 0.22".

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 18.0 GHz
Frequency Min (GHz): 0.5
Frequency Max (GHz): 18
Insertion Loss (dB): 2.0 Max, 1.5 Typ
Input/Output VSWR: 2.0:1 Max
Input Power: 1 Watt CW, 100 Watts Peak, 1 µs Pulse,
0.1% Duty Cycle, Derated to 20% at 125 ºC
RF Leakage (dBm): +14 Max, +10 Typ
Speed: 10 ns
P1dB Limiting Threshold (dBm): +10 Typ
Connectors In/Out: SMA (F)
Size: 0.5" x 0.5" x 0.22"
Environmental Ratings:
Operating Temperature: -54 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
