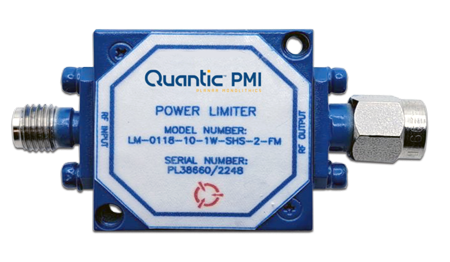

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.1 to 18 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 2 Max, 1.5 Typ @ -20 dBm |
|---|
| Input/Output VSWR: | 2.0:1 (Max) 1.5:1 (Typ) @ -20 dBm |
|---|
| Peak Power: | 100 W |
|---|
| Input Power: | 5 W CW |
|---|
| RF Leakage (dBm): | +15 Max, +10 Typ |
|---|
| Pulse width: | 1 µs |
|---|
| Duty Cycle: | 0.1% |
|---|
| Connectors In/Out: | SMA F/M |
|---|
| Size: | 1.00" x 1.00" x 0.40" |
|---|
| Finish: | Blue Epoxy Polyimide Coating IAW MIL-C-22750, Type I Over Epoxy Polyimide Primer IAW MIL-P-23377, Type I, Class 1 OR 3 |
|---|
| Weight: | 1.5 oz. Max |
|---|
| Leakage: | +15 dBm (Max) +10 dBm (Typ) @ 1 W |
|---|
| VSWR @ -20 dBm Input Power: | 2.0:1 (Max) 1.5:1 (Typ) |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +100 °C |
|---|
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
|---|
| Vibration: | MIL-STD-202F, METHOD 204B COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
|---|
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
|---|
