| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Min: | 0.5 GHz |
|---|
| Frequency Max: | 18.0 GHz |
|---|
| VSWR In/Out: | 3.5:1 |
|---|
| Frequency Flatness: | +/- 1.5 dB, +/- 1.0 dB Typ. |
|---|
| Voltage Sensitivity: | 700 mV/mW |
|---|
| Tangential Sensitivity: | -50 dBm @ 2 MHz Video Bandwidth |
|---|
| Video Capacitance: | 10 pF |
|---|

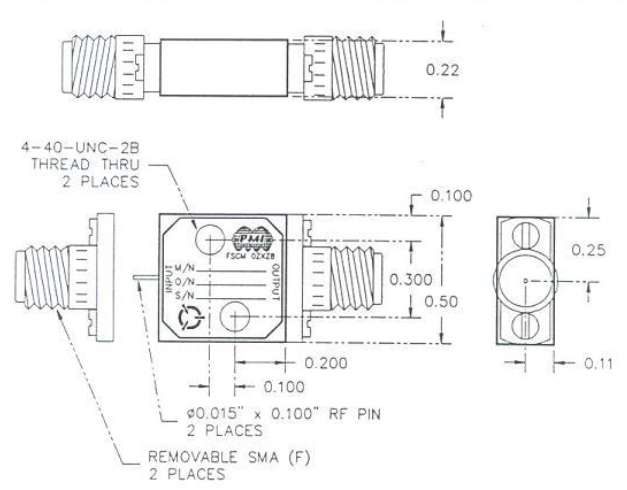

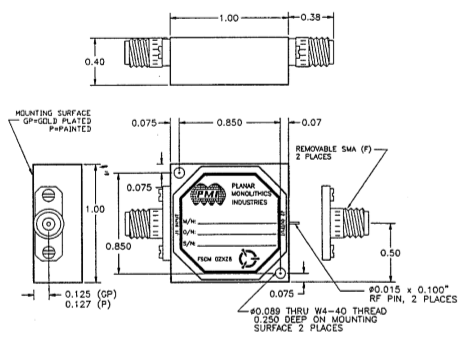

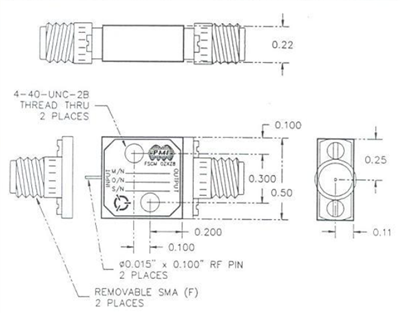

| Size: | Style 1: 0.5" x 0.5" x 0.22" Style 2: 1.0" x 1.0" x 0.4" |
|---|
| Speed: | 10 ns |
|---|
| Input Power: | 40 dBm |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
