LD-50-SHS-N-1 Preliminary

Product Feature

PMI Model No. LD-50-SHS-N-1 is a high speed, high power, high sensitivity, hard diode limiter-detector.  It operates over the frequency range of 0.5 to 18.0 GHz.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 0.5 to 18.0 GHz
Frequency Min: 0.5 GHz
Frequency Max: 18 GHz
VSWR In/Out: 3.5:1 max.
VSWR In/Out (Measured): 3.5:1 max.
Frequency Flatness: ±1.5dB max, ±1.0dB typ.
Voltage Sensitivity: 700 mV/mW
Tangential Sensitivity: -50 dBm @ 2 MHz Video Bandwidth
Video Capacitance: 10 pF
Max Input Power: 1 W CW max. (+40 dBm Peak, 1 us)
Connectors In/Out: SMA(F)
Finish: Painted Blue

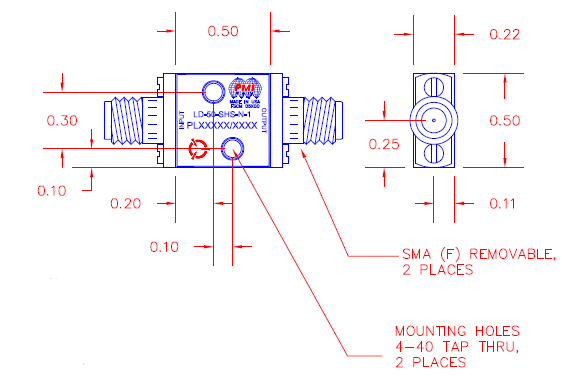

Size: 0.5" x 0.5" x 0.22"
Speed: 10 ns
Environmental Ratings:
Operating Temperature: -54ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
