| General Parameters: |
|---|
| Status: | Active |
|---|
| Center Frequency, Fo (GHz): | 1.09 |
|---|
| Notch Bandwidth (GHz): | 0.26 |
|---|
| Passband Insertion Loss (dB): | 6 dB Max @ DC to 0.91 GHz & 1.27 to 2.4 GHz |
|---|
| Passband VSWR: | 2.0:1 Typ
3.5:1 Max @ Passband Edge |
|---|
| RF Input Power: | 50 W CW |
|---|
| Rejection: | 40 dBc Min @ 0.96 to 1.22 GHz |
|---|
| Connectors In/Out: | SMA Female |
|---|

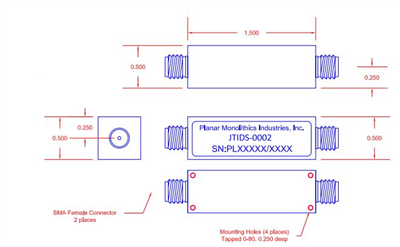

| Size: | 1.5" x 0.5" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating: | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
