Model JTIDS-0001 is an ultra small band reject filter centered at 1085MHz. This filter rejects frequencies from 960 to 1210MHz and was specifically designed for Military JDITS applications.

Product Specifications

General Parameters:
Status: Active
Center Frequency, Fo: 1085MHz
Notch Bandwidth: 250MHz
Passband Insertion Loss: 6.0dB
Passband VSWR: 2.0:1
Rejection: -40dBc @ 960 to 1210MHz

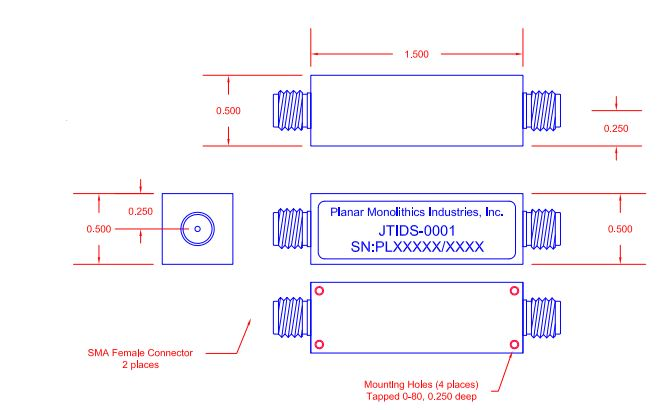

Size: 1.5"L x 0.5"W x 0.5"H
Connectors In/Out: SMA(F/F)
Environmental Ratings:
Temperature: -40ºC to +85 ºC
Non-Operating: -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
