ISO-36-18-SMF Preliminary

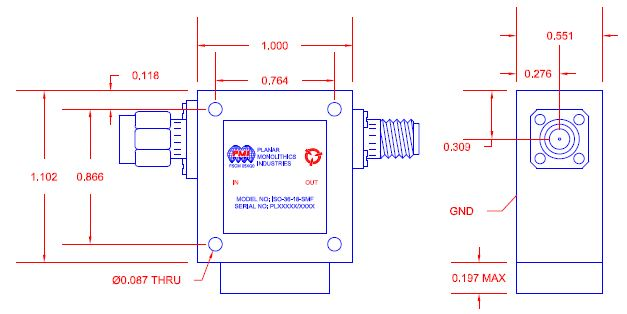

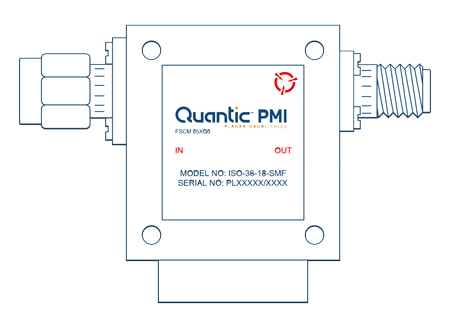

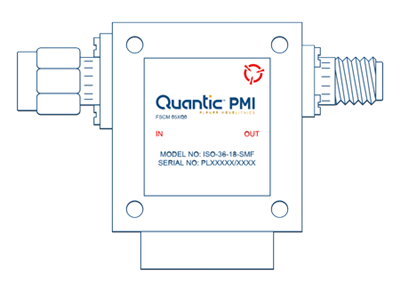

Quantic PMI Model ISO-36-18-SMF is an isolator that operates over the frequency range of 3.0 to 6.0 GHz. It has a maximum insertion loss of 0.5 dB and a minimum isolation of 18 dB. This model is outfitted with a SMA male input connector and a SMA female output connector.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 3.0 to 6.0 GHz
Frequency Min: 3.0 GHz
Frequency Max: 6.0 GHz
Insertion Loss: 0.5 dB Max
Isolation: 18 dB Min
VSWR: 1.3 max.
Forward Power: 100 W
Reverse Power: 20 W
Connectors: SMA (M)/SMA (F)
Finish: Painted Blue
Environmental Ratings:
Temperature: -55 °C to +85 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
