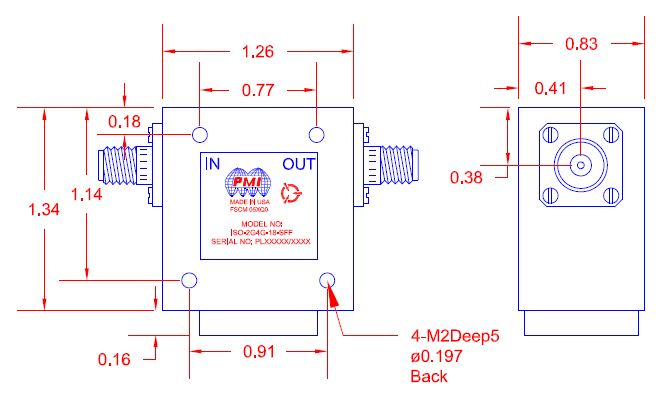

PMI Model No. ISO-2G4G-18-SFF is a an isolator that operates over the frequency 2.0 to 4.0 GHz. It has an insertion loss of 0.6 dB and an isolation of 18 dB. It is outfitted with SMA Female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 2.0 to 4.0 GHz
Frequency Min: 2.0 GHz
Frequency Max: 4.0 GHz
Insertion Loss: 0.6 dB max.
Isolation: 18 dB min.
VSWR: 1.3:1 max.
Forward Power: 100 W max.
Reverse Power: 10 W max.
Connectors: SMA (F)
Environmental Ratings:
Temperature: -30ºC to +75 ºC Operating
-35ºC to +80 ºC Non-Operating
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
