ISO-17G22G-0R6-SFF Preliminary

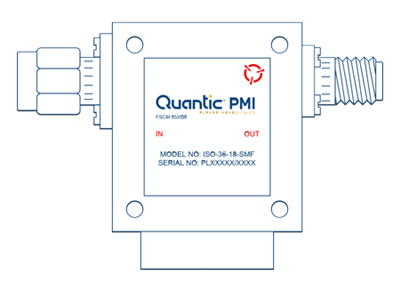

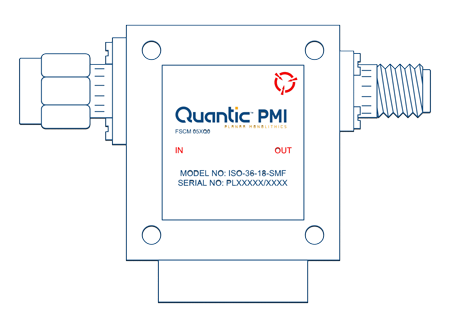

Quantic PMI Model ISO-17G22G-0R6-SFF is an Isolator operating over the 17.0 to 22.0 GHz frequency range. This small sized isolator has power handling of 10 Watt forward, 2 Watt reversed and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 17.0 to 22.0 GHz
Frequency Min: 17 GHz
Frequency Max: 22 GHz
Isolation: 0.6 dB Max
Reverse Isolation: 20.0 dB Min
VSWR: 1.3:1 Max
Forward Power: 10 Watts Min
Reverse Termination: 2 Watts Min
Size: 0.79" x 0.53" x 0.51"
Finish: Painted Blue
Environmental Ratings:
Temperature: -25 ºC to +55 ºC Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
