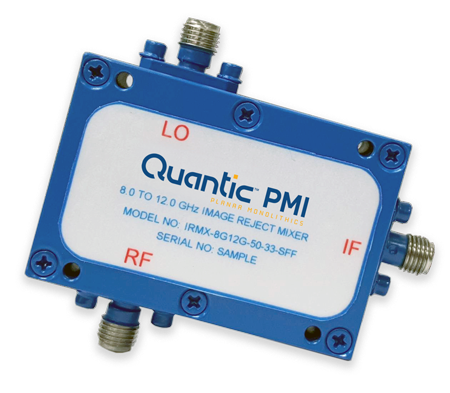

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 8.0 to 12.0 GHz |
|---|
| Frequency Min: | 8 GHz |
|---|
| Frequency Max: | 12 GHz |
|---|
| Connectors: | SMA Female |
|---|
| Size (Excluding Connectors): | 2.00" x 1.35" x 0.58"
50.80 mm x 34.29 mm x 14.78 |
|---|
| LO Power: | +14 dBm Min, +15 dBm Typ, +17 dBm Max |
|---|
| RF VSWR: | 3.0:1 Typ |
|---|
| LO VSWR: | 1.4:1 Typ |
|---|
| Conversion Loss: | 7.5 dB Typ, 9.0 dB Max |
|---|
| Noise Figure: | 8 to 9.5 dB |
|---|
| Nominal Impedance: | IF Output Impedance: 50 O |
|---|
| Input IP3: | 23 dBm |
|---|
| Input P1dB: | 14 dBm Typ |
|---|
| LO-RF Isolation: | 40 dB Min, 50 dB Typ |
|---|
| LO-IF Isolation: | 55 dB Typ |
|---|
| Image Rejection: | 23 dB Min, 33 dB Typ |
|---|
| LO/RF Input Power w/o Damage: | 23 dBm Max |
|---|
| Finish: | Painted Blue |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 ºC to +85 ºC |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
