IRMX-4G8G-55-35-SFF-HIGH Active

Image Reject Mixer

Product Feature

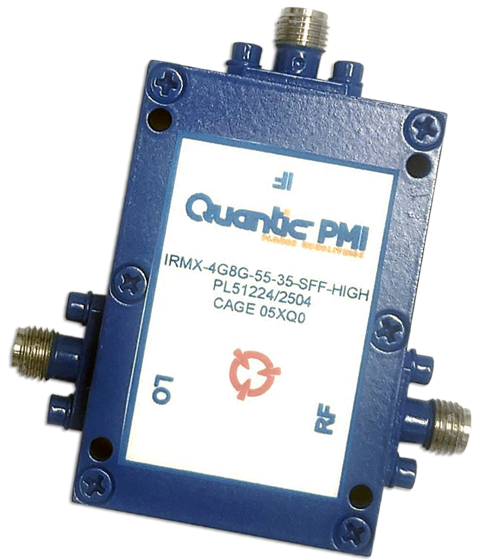

Quantic PMI Model IRMX-4G8G-55-35-SFF-HIGH is an Image Reject Mixer operating over the 4 to 8 GHz frequency range. This model offers a typical image rejection of 35 dB while limiting the noise figure to 8 dB typical. This product is configured for high side conversion, IF = LO - RF. Housing size is 1.35" x 2.0" x 0.58" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 4 to 8 GHz
Frequency Min: 4 GHz
Frequency Max: 8 GHz
Connectors: SMA (F)
Size (Excluding Connectors): 1.35" x 2.0" x 0.58"
LO Power: 14 dBm Min
15 dBm Typ
17 dBm Max
RF VSWR: 2.0:1 Typ
LO VSWR: 1.4:1 Typ
Conversion Loss: 7.5 dB Typ
10.5 dB Max
Noise Figure: 8 dB Typ
10.5 dB Max
Input IP3: 24 dBm Typ
Input P1dB: 14 dBm Typ
LO-RF Isolation: 55 dB Typ
40 dB Min
LO-IF Isolation: 55 dB Typ
Image Rejection: 35 dB Typ
25 dB Min
LO/RF Input Power w/o Damage: 23 dBm Max
Finish: Painted Blue
Environmental Ratings:
Temperature (Operating): -40 ˚C to +85 ˚C
