IRMX-2G4G-55-35-SFF-HIGH Active

Image Reject Mixer

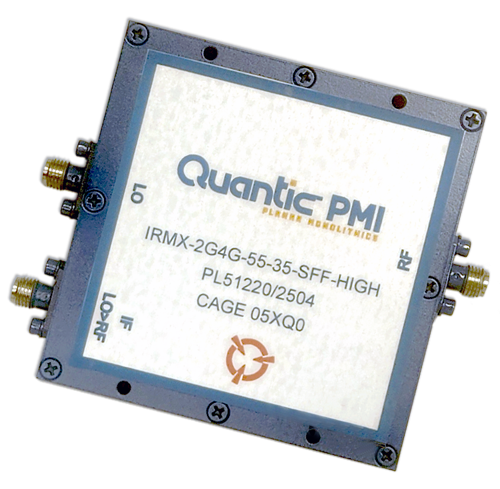

Quantic PMI Model IRMX-2G4G-55-35-SFF-HIGH is an Image Reject Mixer operating over the 2 to 4 GHz frequency range. This model offers a typical image rejection of 35 dB while limiting the noise figure to 10 dB typical. This product is configured for high side conversion, IF = LO - RF. Housing size is 2.85" x 2.85" x 0.63" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 2 to 4 GHz
Frequency Min: 2 GHz
Frequency Max: 4 GHz
Connectors: SMA (F)
Size (Excluding Connectors): 2.85" x 2.85" x 0.63"
LO Power: 13 dBm Min
15 dBm Typ
16 dBm Max
RF VSWR: 2.5:1 Typ
LO VSWR: 1.5: 1 Typ
Conversion Loss: 9.5 dB Typ
11.5 dB Max
Noise Figure: 10 dB Typ
Input IP3: 17 dBm Typ
Input P1dB: 6 dBm Typ
LO-RF Isolation: 55 dB Typ
45 dB Min
LO-IF Isolation: 45 dB Typ
Image Rejection: 35 dB Typ
20 dB Min
RF Input Power: 25 dBm Max
Environmental Ratings:
Temperature (Operating): -40 ˚C to +85 ˚C
