HP3G55M18G-SMA Active

High Pass Filter

Buy Now
HP3G55M18G-SMA
Product Feature

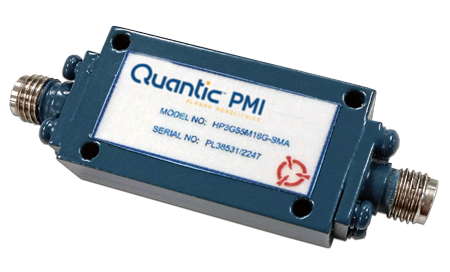

Quantic PMI Model HP3G55M18G-SMA is a high pass filter that operates over the frequency range of 3.55 to 18 GHz that has a maximum insertion loss of 1.5 dB and a maximum VSWR of 2.0:1. Supplied with SMA female connectors in a housing measuring 1.26" x 0.71" x 0.39".

Product Specifications

General Parameters:
Status: Active
Passband Frequency (GHz): 3.55 to 18
Cut-Off Frequency (GHz): 3.55
Passband Insertion Loss (dB): 1.5 dB Max
Rejection: 55 dB Min at DC to 2.8 GHz
Input Power: 10 W Max
Impedance: 50 Ohm
Insertion Loss: 1.5 dB Max
VSWR: 2.0:1 Max
Connectors: SMA Female
Size: 1.26" x 0.71" x 0.39"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
