HP2G-1780-CD-SS Active

High Pass Filter

Buy Now
HP2G-1780-CD-SS
Product Feature

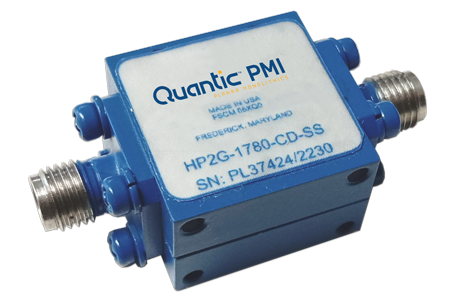

Quantic PMI Model HP2G-1780-CD-SS is a a high pass filter having a passband of 2 to 18 GHz.  Cut-Off Frequency is 2.0 GHz with a typical passband insertion loss of 0.5 dB.  This model provides 80 dB typical rejection at 0.87 GHz. Package size is 0.75" x 0.75" x 0.50" and contains SMA Female connectors.

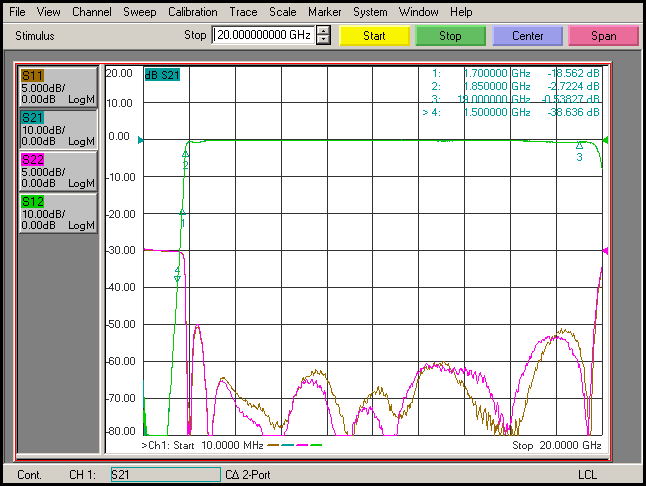

Product Specifications

General Parameters:
Status: Active
Passband Frequency (GHz): 2 to 18
Cut-Off Frequency (GHz): 2
Passband Insertion Loss (dB): 0.8 dB Max
Passband VSWR: 2.0:1 Max
Rejection @ 0.87 GHz: 80 dBc
Operating Input Power: 50 W CW
Input Power: 50W
Connectors: SMA Female
Size: 0.75" x 0.75" x 0.50"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to +85 ºC
Temperature (Storage): -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
