HP2D2G-1575-SFF Active

High Pass Filter

Buy Now
HP2D2G-1575-SFF
Product Feature

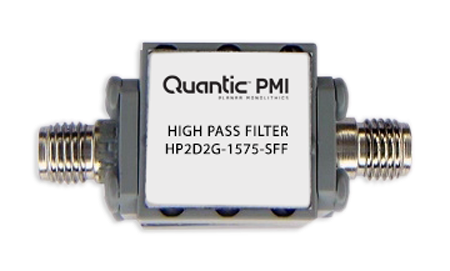

Quantic PMI Model HP2D2G-1575-SFF is a suspended high pass filter having a passband of 2.2 to 5.3 GHz. Cut-Off Frequency is 2.2 GHz with a maximum passband insertion loss of 1 dB maximum that provides 35 dB minimum rejection at 1.575 GHz. Package size is 0.75" x 0.75" x 0.5" with SMA female connectors in and out.

Product Specifications

General Parameters:
Status: Active
Passband Frequency (GHz): 2.2 to 5.3
Cut-Off Frequency (GHz): 2.2
Passband Insertion Loss (dB): 0.5 dB Typ, 1 dB Max
Passband VSWR: 1.5:1 Typ, 2.0:1 Max
Rejection: 35 dB Min at 1.575 GHz
Passband Ripple: 0.5 dB (Peak-to-Peak) Max
Connectors: SMA Female
Size: 0.75" x 0.75" x 0.5"
Weight: 1 oz Typ
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, METHOD 103B COND. B
Shock: MIL-STD-202F, METHOD 213B COND. B
Vibration: MIL-STD-202F, METHOD 2040 COND. B
Temperature Cycle: MIL-STD-202F, METHOD 107
