GMPA-8217-7 Active

Low Noise Amplifier

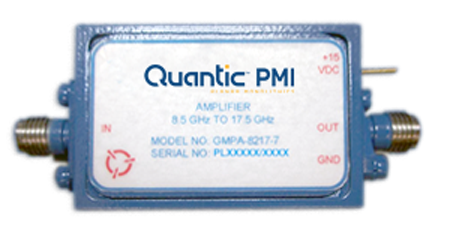

Quantic PMI Model No. GMPA-8217-7 is an 8.5 to 17.5 GHz Amplifier with small signal gain from 6 to 9 GHz and a P1dB output power of 22 dBm. This unit is supplied with SMA female connectors in a housing measuring 1.56" x 1.00" x 0.60".

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 8.5 to 17.5
Frequency Min (GHz): 8.5
Frequency Max (GHz): 17.5
Gain (dB): 9 dB Max
Gain (Measured): 9 dB Max - Measured 8.79 dB
Noise Figure (dB): -85 dBm / MHz Max
OP1dB (dBm): 22 dBm Min
VSWR In/Out: 2.0:1 Max - Measured 1.82:1
DC Voltage (VDC): +15 VDC
DC Current (mA): 700 mA
Impedance: 50 Ohm
In-Band Harmonics: -10 dBc @ +19 dBm Input - Measured -29.85 dBc
Connectors: SMA Female
Size: 1.56" x 1.00" x 0.60"
Finish: Painted Blue
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating,
-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
