GMPA-1002 Active

L-Band Power Amplifier

Product Feature

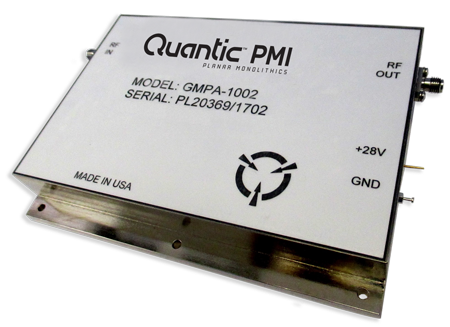

Quantic PMI Model GMPA-1002 is an L-Band power amplifier which operates in the 1 to 1.5 GHz frequency range with a 45 dB gain with a noise figure of 12 dB and a power output of over 12 W.  Package size is 6.0" x 4.8" x 1.0" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 1.5
Frequency Min (GHz): 1
Frequency Max (GHz): 1.5
Gain (dB): 45 dB Min
Gain (dB) - Measured: 45 dB Min,
50 dB Max,
48 dB @ 1 GHz,
47.2 dB @ 1.25 GHz,
47 dB @ 1.5 GHz
Noise Figure (dB): 12 dB Max
VSWR In/Out: 2.0:1 - Measured Input: 1.17:1 / Output: 1.21:1
OP1dB (dBm): 43 dBm Min
OPsat: 43 dBm Min within the operating temperature,
43.43 dB @ -54 °C,
42.91 dB @ +25 °C,
42.86 dB @ 85 °C
RF Input Power: 20 mW CW Max
DC Voltage: +27 to +29 VDC
DC Current Draw: 7 A Typ, 9 A Max
Connectors: SMA Female
Size: 6.0" x 4.8" x 1.0"
Finish: Electroless Nickel Plated
Environmental Ratings:
Temperature (Operating): -54 ºC to 85 ºC @ Mouting Surface
Temperature (Non-Operating): -57 ºC to +125 ºC
