FD-74M-10M-1212 Active

Frequency Discriminator

FD-74M-10M-1212
Product Feature

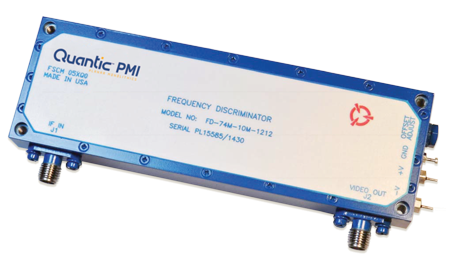

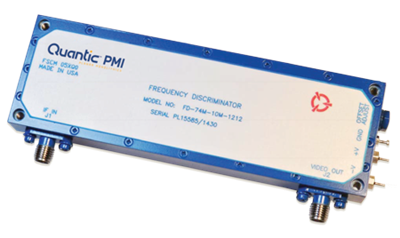

Quantic PMI Model FD-74M-10M-1212 is a Frequency Discriminator that operates at a center frequency of 0.074 GHz. It has a peak-to-peak bandwidth of 30 MHz and a linear bandwidth of 10 MHz minimum. With a dynamic range of -10 to 0 dBm, the sensitivity into a 93 Ohm load is 100 mV/MHz. This unit offers a maximum rise time of 50 ns.  Package size is 4.625" x 1.5" x 0.47" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.069 to 0.079
Frequency Min (GHz): 0.069
Frequency Max (GHz): 0.079
Center Frequency (GHz): 0.074
Input VSWR: 2.0:1 Max
Peak to Peak Bandwidth: 0.030 GHz Min
Linear Bandwidth: 10 MHz Min
Sensitivity: 100 mV/MHz ± 5% into 93 Ohm load
Linearity: ±5% Max
Input Dynamic Range: -10 to 0 dBm Min
Rise Time: 50 ns Max
DC Power Supply: +12 VDC @ 200 mA Max
-12 VDC @ 100 mA Max
Connectors: SMA Female
Size: 4.625" x 1.5" x 0.47"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Storage Temperature: -65 °C to +100 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
