FD-30M-4M-1528 Preliminary

Frequency Discriminator

FD-30M-4M-1528
Product Feature

Quantic PMI Model FD-30M-4M-1528 is a frequency discriminator with a center frequency of 0.03 GHz with a peak-to-peak bandwidth of 8 MHz and a linear bandwidth of 4 MHz minimum. With a dynamic range of -5 to 5 dBm, the sensitivity into a 93 Ohm load is 1 mV/MHz. This unit offers a maximum rise time of 50 ns.  Package size is 4.625" x 1.5" x 0.47" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.026 to 0.034
Frequency Min (GHz): 0.026
Frequency Max (GHz): 0.034
Sensitivity: 1 mV/MHz into 93 Ohm Load
Rise Time: 200 ns Max
IF Input Center Frequency: 30 MHz
IF Input Peak Bandwidth: 8 MHz P-P Min
IF Linear Bandwidth: 4 MHz Min
IF Input Level: -5 to +5 dBm
IF Input Impedance: 50 Ohm
IF Input VSWR: 2.0 Max
Video Output Bandwidth: 3 MHz Min
Video Output (Input/Output Property): 1.0 V/MHz
(+1.0 ± 0.1 V: 0 dBm @ 31 MHz Input)
Video Output Voltage Precision (29 to 31 MHz): Within ±40 kHz (IF Input)
Output Impedance: 93 Ohm
Video Output Offset: Adjustable
Power Supply: ±15 VDC ± 0.5 VDC @ 130 mA Max
+28 VDC ± 0.8 VDC @ 2 A Max
Connectors: SMA Female

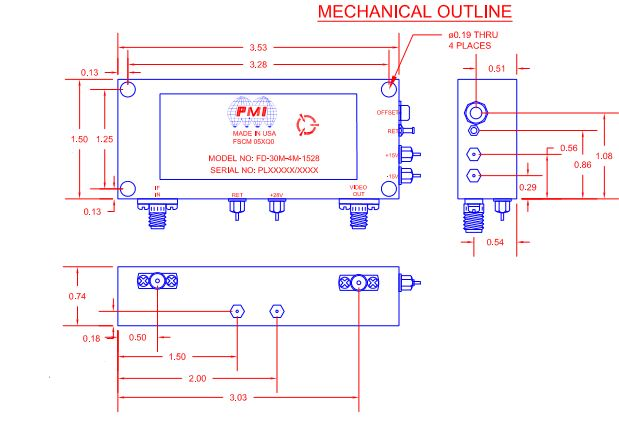

Size: 3.53" x 1.50" x 0.74"
Weight: 115 g
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: 0 °C to +70 °C
Storage Temperature: -40 °C to +70 °C
Humidity: 95% (+60°C) RH Max
