FD-1G2G-1515-SFF Preliminary

Frequency Discriminator

Product Feature

Quantic PMI Model FD-1G2G-1515-SFF is a Frequency Discriminator that operates over the frequency range of 1 to 2 GHz. The sensitivity into a 100 Ohm load is 1 V/GHz.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 1 to 2 GHz
Frequency Min: 1 GHz
Frequency Max: 2 GHz
Input VSWR: 2.0:1 Max

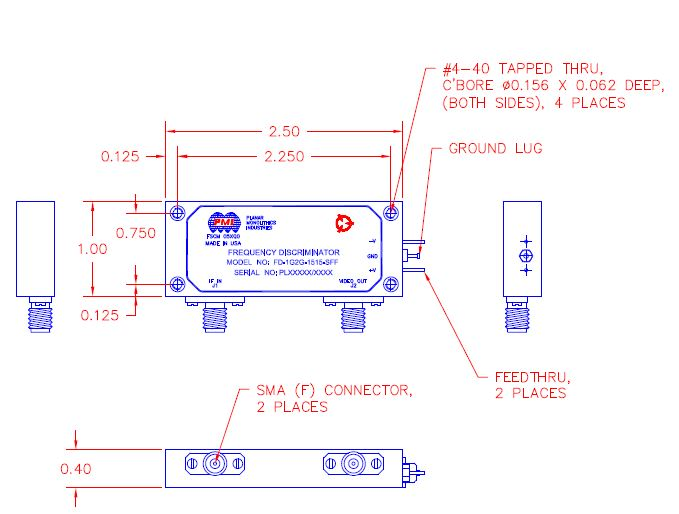

Size: 2.5" x 1.0" x 0.4"
Frequency Discriminator Accuracy: ±0.1 GHz
RF Input Power, Survival: +V: +15 VDC @ 75 mA
-V: -15 VDC @ 75 mA
Video Output Slope: 1 V /GHz Nom
Video Impedance: 100 Ohm
Video Output Rise Time: 20 ns
Operating Input Power: + 10 dBm ± 0.1 dBm
Weight: 4 oz. Max
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Storage Temperature: -65 °C to + 125 °C
Humidity: MIL-STD-202, METHOD 1038 COND. B
Shock: MIL-STD-202, METHOD 2138 COND. B
Vibration: MIL-STD-202, METHOD 2040 COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 1070 COND. A
