FD-160M-100M-1515 Preliminary

Frequency Discriminator

FD-160M-100M-1515
Product Feature

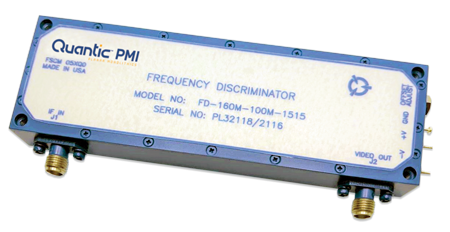

Quantic PMI Model FD-160M-100M-1515 is a frequency discriminator that operates 0.11 to 0.21 GHz frequency with a center frequency of 0.16 GHz that offers a linearity of ±3% maximum @ 25 °C, a dynamic range of -10 to 0 dBm, the sensitivity into a 50 Ohm load is within 9.5 to 10 mV/MHz. This unit offers a maximum rise time of 50 ns. Package size is 4.63" x 1.50" x 0.47" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.16
Frequency Min (GHz): 0.16
Frequency Max (GHz): 0.16
Center Frequency (GHz): 0.16
Input VSWR: 1.5:1 Max
Sensitivity: 9.5 to 10 mV/MHz
Linearity: ±3% Max, ±5% Max
Input Dynamic Range: -10 to 0 dBm Min
Video Output Rise Time: 1 V Max
Rise Time: 10 ns Max
DC Power Supply: ±15 VDC @ 400 mA Max
Connectors: SMA Female
Size: 4.63" x 1.50" x 0.47"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Storage Temperature: -65 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
