| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 1.5 |
|---|
| Frequency Min (GHz): | 1.5 |
|---|
| Frequency Max (GHz): | 1.5 |
|---|
| Center Frequency (GHz): | 1.5 |
|---|
| Input VSWR: | 2.0:1 Max |
|---|
| Peak to Peak Bandwidth: | 0.5 GHz Min |
|---|
| Sensitivity: | 10 mV/MHz Typ into 93 Ohm |
|---|
| Offset Adjust: | ±100 mV Min |
|---|
| Accuracy: | ±10 MHz @ +25 °C,
±25 MHz @ 0 °C to +50 °C |
|---|
| Input Dynamic Range: | -10 to 0 dBm Min |
|---|
| Rise Time: | 10 ns Typ |
|---|
| DC Power Supply: | +5 VDC @ 25 mA Typ (No Load),
-5 VDC @ 70 mA Typ (No Load) |
|---|
| Connectors: | SMA Female |
|---|

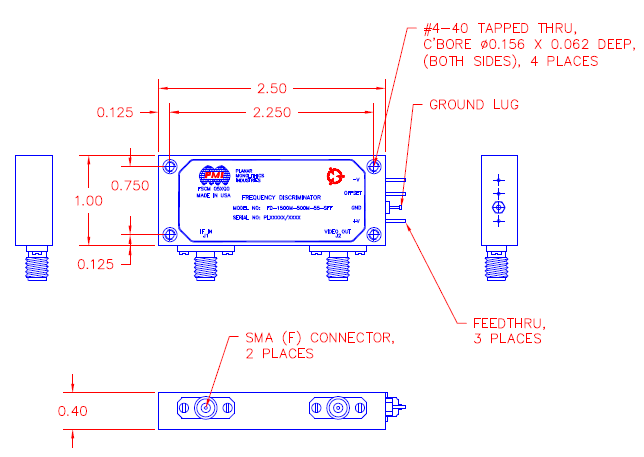

| Size: | 2.5" x 1.0" x 0.4" |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 28 g Typ |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -45 °C to +85 °C |
|---|
| Storage Temperature: | -55 °C to +100 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
