FD-0518-10-812 Active

Frequency Discriminator

Buy Now
Product Feature

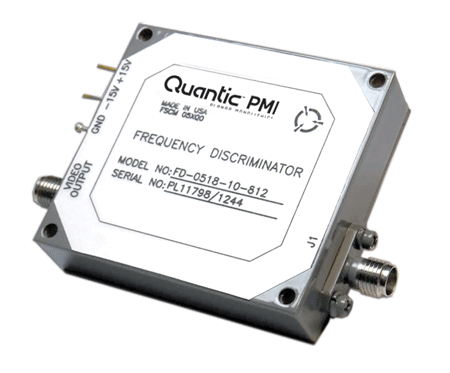

Quantic PMI Model FD-0518-10-812 is an 8 to 12 GHz Frequency Discriminator that provides a video output of 50 mV/GHz and has an accuracy of ±0.2 GHz. The rise time is <20 ns and operates into a 100 Ω video load. This model operates on ±15 VDC and measures 2.0" x 1.82" x 0.5" with SMA (F) connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 8 to 12 GHz
Frequency Min: 8 GHz
Frequency Max: 12 GHz
Input VSWR: 2.0:1 Max 1.5:1 Typ - Measured 1.44:1
Size: 2.00" x 1.82" x 0.50"
Frequency Discriminator Accuracy: ±0.2 GHz
RF Input Power, Survival: +15 dBm
Video Output Slope: 50 mV/GHz - Measured 50.735 mV/GHz
Video Impedance: 100 Ohm
Video Output Rise Time: 20 ns - Measured 5 ns
Connectors: SMA (F)
Power Minus: -15 VDC @ -75 mA - Measured -11 mA
Power Plus: +15 VDC @ +75 mA - Measured +11 mA
Operating Input Power: +10 dBm Nom, ±0.1 dBm
Weight: <4 oz
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
