FD-0518-10-618 Active

Frequency Discriminator

Product Feature
Additional Documents

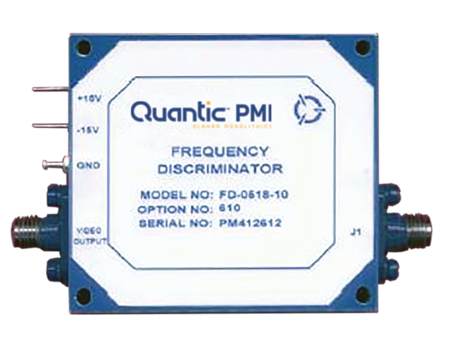

Quantic PMI Model FD-0518-10-618 is a Frequency Discriminator translates incoming RF / Microwave signals into a monotonic output voltage that is proportional to the RF / Microwave frequency. Accurate frequency information can then be derived from the Output Voltage because a Delay Line Frequency Discriminator takes the Input RF / Microwave Signal and produces two RF / Microwave Signal components that have a phase shift that is proportional to the original input frequency at fixed power input levels. By summing the two signal components together and then using detection techniques produces a detected Output Voltage that is frequency dependent. Therefore, as the input RF / Microwave Signal frequency is varied so does the output voltage of the Delay Line Frequency Discriminator.  Package size is 2.00"x 1.82" x 0.50" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 6 to 18 GHz
Frequency Min: 6 GHz
Frequency Max: 18 GHz
Center Frequency: 6 to 18 GHz
Input VSWR: 2.0:1 Max, 1.5:1 Typ
Size: 2.00"x 1.82" x 0.50"
Frequency Discriminator Accuracy: ±0.2 GHz
RF Input Power, Survival: 15 dBm
Video Output Slope: 50 mV/GHz
Impedance: 100 Ohm
Video Output Rise Time: 20 ns
Power Minus: -15 VDC @ -75 mA, -50 mA Typ
Power Plus: +15 VDC @ +75 mA, +50 mA Typ
Operating Input Power: +10 dBm Nom, ±0.1 dBm
Weight: <4 oz
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
