FD-0518-10-610 Active

Frequency Discriminator

Product Feature

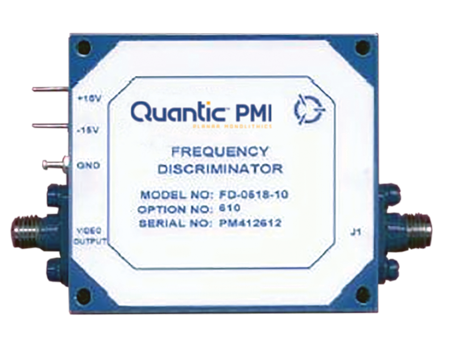

Quantic PMI Model FD-0518-10 Option 610 is a 6 to 10 GHz Frequency Discriminator having a VSWR of 2.0:1 Maximum and 1.5:1 Typical and a Frequency Discriminator Accuracy of ±200 MHz.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 6 to 10 GHz
Frequency Min: 6 GHz
Frequency Max: 10 GHz
Input VSWR: 2.0:1 Max, 1.5:1 Typ
Size: 2.00" x 1.82" x 0.50"
Frequency Discriminator Accuracy: ±0.2 GHz Typ, ±0.3 GHz Max
RF Input Power, Survival: +15 dBm
Video Output Slope: 50 mV/GHz
Video Impedance: 100 Ohm Nom
Video Output Rise Time: 20 ns
Power Minus: -15 VDC @ -75 mA
Power Plus: +15 VDC @ +75 mA
Operating Input Power: +10 dBm Nom, ±0.1 dBm
Weight: <4 Oz
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
