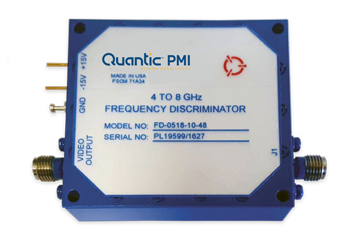

FD-0518-10-48

Frequency Discriminator

PMI Model No: FD-0518-10-48 is a 4.0 to 8.0 GHz Frequency Discriminator that provides a video output of 50 mV/GHz and has an accuracy of +/-200 MHz. This model has a rise time is less than 20 ns and operates into a 100 Ω video load. This model operates on +/-15 VDC and measures 2.0" x 1.82" x 0.5".

Product Specifications

General Parameters:
Status: Active
Frequency Min: 4 GHz
Frequency Max: 8 GHz
Center Frequency: 4.0 to 8.0 GHz
Input VSWR: 2.0:1 Max, 1.5:1 Typ - Measured 1.19:1
Size: 2.00" x 1.82" x 0.50"
Frequency Discriminator Accuracy: ±200 MHz - Measured +100/-150 MHz
RF Input Power, Survival: +15 dBm
Video Output Slope: 50 mV/GHz - Measured 49.94 mV/GHz
Video Impedance: 100 Ohms Nom
Video Output Rise Time: 20 ns - Measured 5 ns
Power Minus: -15 VDC @ -75 mA - Measured 8 mA
Power Plus: +15 VDC @ +75 mA - Measured 11 mA
Operating Input Power: +10 dBm Nom, ± 0.1 dBm
Weight: 4 Oz Max
Environmental Ratings:
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
