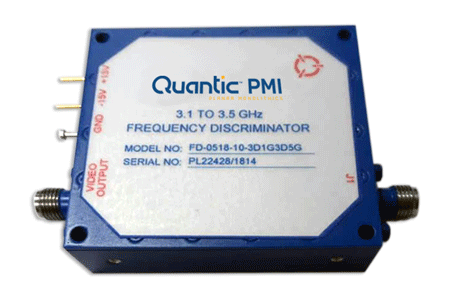

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 3.1 to 3.5 |
|---|
| Frequency Min (GHz): | 3.1 |
|---|
| Frequency Max (GHz): | 3.5 |
|---|
| Center Frequency (GHz): | 3.1 to 3.5 |
|---|
| Input VSWR: | 2.0:1 Max, 1.5:1 Typ - Measured 1.68:1 Max |
|---|
| Discriminator Accuracy (GHz): | ±0.01 GHz goal,
±0.02 GHz Max |
|---|
| RF Input Power, Survival: | 15 dBm - Measured 15 dBm |
|---|
| Video Output Slope: | 50 mV/GHz |
|---|
| Video Impedance: | 100 Ohm Nom |
|---|
| Video Output Rise Time: | 20 ns - Measured 10 ns |
|---|
| Operating Input Power: | 10 dBm Nom, ±0.1 dBm |
|---|
| DC Power Supply: | +15 VDC @ +75 mA - Measured +15 mA
-15 VDC @ -75 mA - Measured -12 mA |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 2.00" x 1.82" x 0.50" |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 4 oz Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
