FD-0518-10-2G4G Active

Frequency Discriminator

FD-0518-10-2G4G
Product Feature

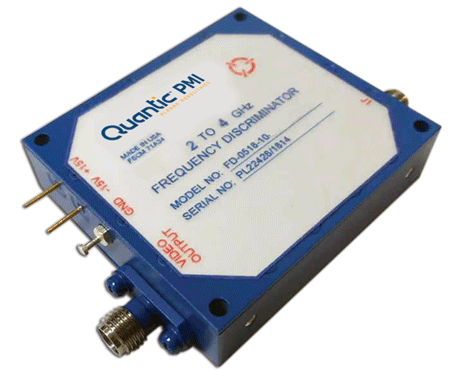

Quantic PMI Model FD-0518-10-2G4G is a 2 to 4 GHz, Frequency Discriminator having a VSWR of 2.0:1 maximum, 1.5:1 typical, and a video output slope of 1V/GHz.  Package size is 2.0" x 1.82" x 0.5" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 4
Frequency Min (GHz): 2
Frequency Max (GHz): 4
Center Frequency (GHz): 2 to 4
Input VSWR: 2.0:1 Max, 1.5:1 Typ
Discriminator Accuracy (GHz): ±0.1 GHz
RF Input Power, Survival: 15 dBm
Video Output Slope: 1 V/GHz Nom
Video Impedance: 100 Ohm Nom
Video Output Rise Time: 20 ns
Operating Input Power: 10 ± 0.1 dBm
DC Power Supply: +15 VDC @ +75 mA,
-15 VDC @ -75 mA
Connectors: SMA Female
Size: 2.00" x 1.82" x 0.50"
Finish: Painted Blue
Weight: 4 oz Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
