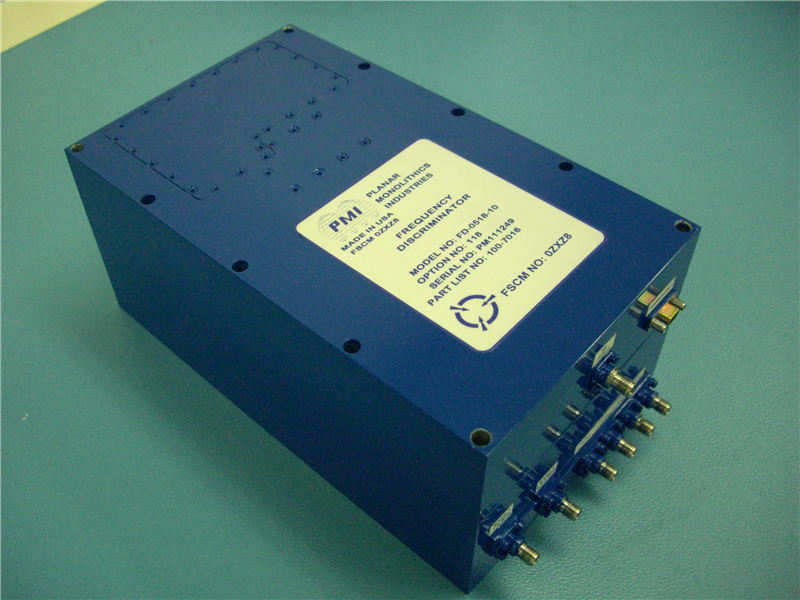

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 1 to 18 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Input VSWR: | 2.0:1 Max |
|---|
| Output Channels: | 6 Output Channels,
Channel 1: 1 to 2 GHz,
Channel 2: 2.0 to 4.2 GHz,
Channel 3: 4.2 to 6.1 GHz,
Channel 4: 6.1 to 8.7 GHz,
Channel 5: 8.7 to 12.5 GHz,
Channel 6: 12.5 to 18 GHz |
|---|
| Video Impedance: | 100 Ohm |
|---|
| Video Output Rise / Fall Times: | 20 ns Max |
|---|
| Operating Input Power: | 10 ± 0.1 dBm |
|---|
| DC Power Supply: | +15 VDC @ 875 mA Max,
-15 VDC @ 150 mA Max |
|---|
| Control: | TTL |
|---|
| Connectors: | RF: SMA (F),
Control: DB9 |
|---|
| Size: | 8.5" x 5.0" x 3.75" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Storage Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
