| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | DC-50 GHz |
|---|
| Frequency Min: | DC |
|---|
| Frequency Max: | 50 GHz |
|---|
| Maximum Input Power: | +28 dBm MAX |
|---|
| VSWR: | 1.6:1 TYP -1.8:1 MAX |
|---|
| Insertion Loss: | 13.0 dB @ 10MHz - 2GHz MAX. - 3.0 dB @ 45 - 50GHz MAX. |
|---|
| Slope (Frequency/Amplitude): | 0.25 ± 0.06 dB/GHz MAX |
|---|
| Amplitude Accuracy: | ± 2 dB MAX (COMPARED TO BEST FIT STRAIGHT LINE) |
|---|
| Connectors In / Out: | 2.4mm FEMALE REMOVABLE |
|---|

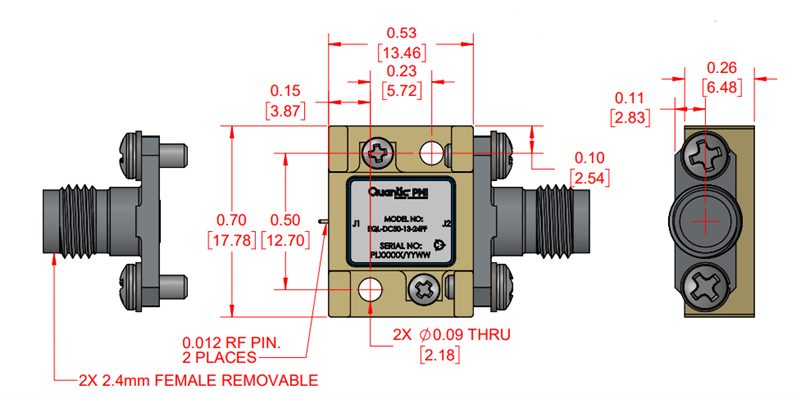

| Size: | 0.53" x 0.70" x 0.26" |
|---|
| Finish: | Gold PLATED |
|---|
| Weight: | 2 oz MAX |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55°C TO +85°C |
|---|
| Temperature (Storage): | -65°C TO +125°C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
