EQL-DC40-20-292FF Active

Passive Equalizer

  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/Capture_32004056_400.JPG
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/EQL_DC40_20_292FF_46594773_400.png
Product Feature

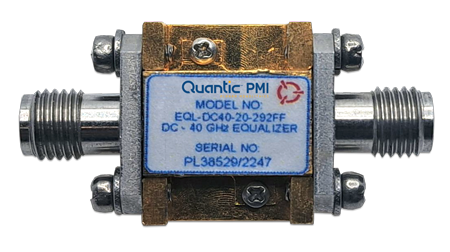

Quantic PMI Model EQL-DC40-20-292FF is a DC to 40 GHz passive equalizer with a 20 dB Typ loss at 10 MHz with a insertion loss of 3 dB Typ at 40 GHz. The equalizer design allows both forward and reverse measurements to be equivalent.  This model has SMA female connectors and a size of 0.53" x 0.70" x 0.26".  Dual use connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 0.01 TO 40 GHz
Frequency Min: 0.01 GHz
Frequency Max: 40 GHz
Maximum Input Power: +30 dBm (1 W)
VSWR: 1.6:1 Typ
1.8:1 Max
Insertion Loss: 20.0 dB @ 10 MHz - 2 GHz Typ
3.0 dB @ 38 - 40 GHz Typ
Amplitude Accuracy: ± 1 dB Typ (Compared to best fit stright line)
Connectors In / Out: 2.92mm (F) Removable

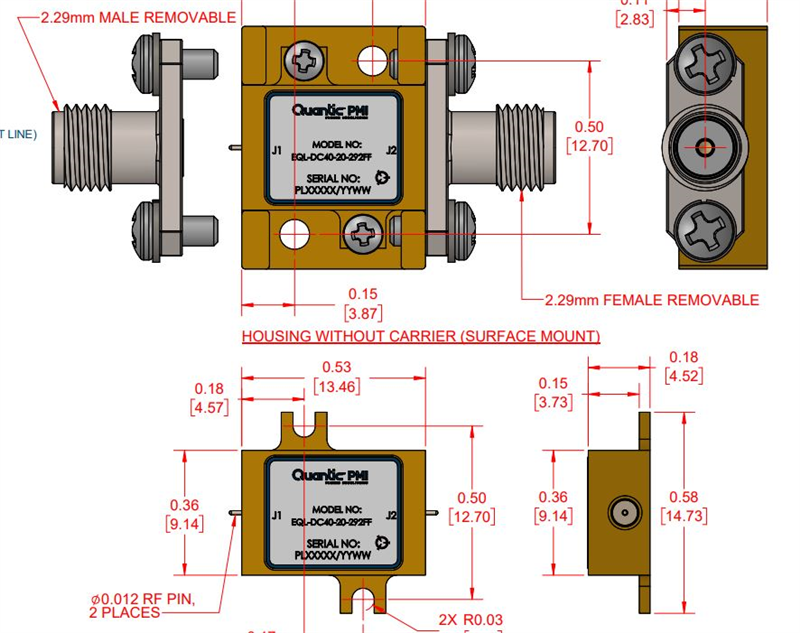

Size: 0.53" x 0.36" x 0.18"
Finish: Gold Plated
Weight: 10g Max
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
