EQL-26D5G40G-1D5DB-292MF Active

Passive Amplitude Equalizer

Buy Now
EQL-26D5G40G-1D5DB-292MF
Product Feature

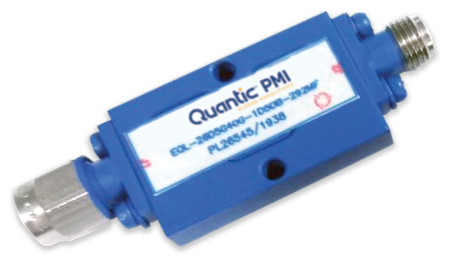

Quantic PMI Model EQL-26D5G40G-1D5DB-292MF is a 26.5 to 40 GHz, Passive Amplitude Equalizer with a negative slope.  This Equalizer has a maximum input power of 0.5 W, a maximum VSWR of 2.0:1, a maximum insertion loss of 1.5 dB at 26.5 GHz, and an amplitude accuracy of ±0.5 dB, has 2.92mm male / female connectors, and the housing size is 1.1" x 0.67" x 0.22".

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 26.5 to 40
Frequency Min (GHz): 26.5
Frequency Max (GHz): 40
Input Power Max: 0.5 W CW
VSWR: 2.0:1 Max
Insertion Loss (dB): 1.5 dB Max (@ 26.5 GHz
Slope (Frequency/Amplitude): -0.41 ± 0.06 dB / GHz
Amplitude Accuracy: ±0.5 dB (Compared to best fit straight line)
Connectors In / Out: 2.92mm Male / Female
Size: 1.10" x 0.67" x 0.22"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
